DOUBLE DRUM SEPARATOR MAHCINE (RP/ HP)

200000.00

200000.00

Inclusive of all taxes

Brand GALAXY
ITC-HSN: 732690
Minimum Order Quantity: 1
Accept Small Orders No
Country Of Origin: India
Write a Review

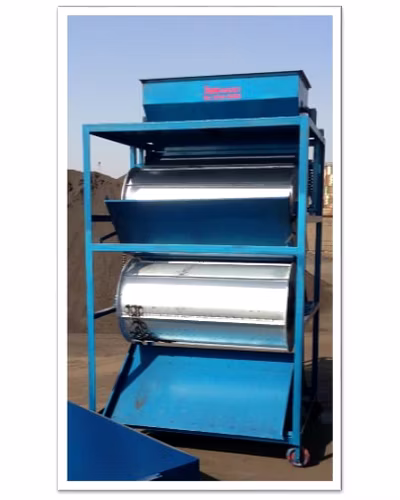

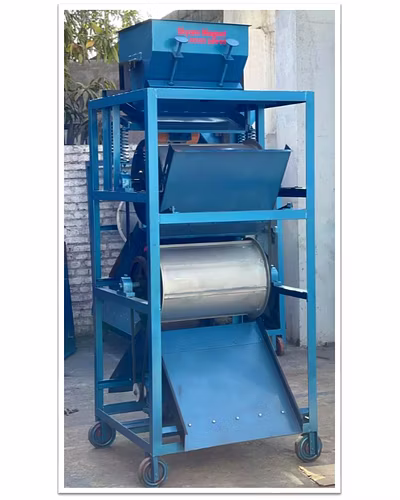

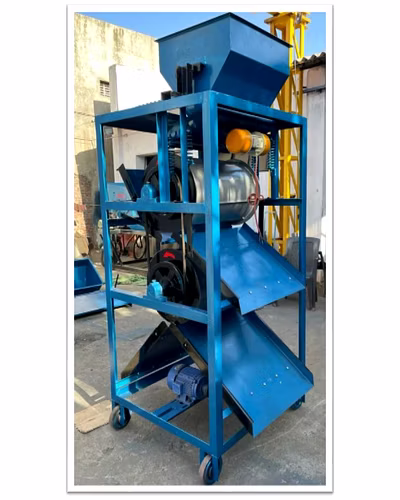

The Double Drum Magnetic Separator (RP/HP type) is designed for continuous iron removal from dry bulk materials in two stages. Equipped with high-power rare-earth magnets, this machine ensures superior separation efficiency for materials with moderate to high ferrous contamination. Ideal for mineral, refractory, ceramic, and chemical industries.

Features:

  • Two-stage iron separation for enhanced purity
  • High-power rare-earth magnetic drums
  • Available in RP (Regular Power) and HP (High Power) models
  • Built-in feed hopper and discharge chutes
  • Heavy-duty steel construction with mobility wheels

Attributes:

  • Type: Double Drum Magnetic Separator (Dry Type)
  • Magnet Strength: RP & HP Options
  • Applications: Minerals, Ceramics, Refractories, Chemicals
  • Material Handling: Dry granular or powdered feed
  • Design: Compact, mobile, and enclosed dust-free operation
  • Additional Information

    Product Overview

    The Double Drum Magnetic Separator is a high-efficiency system built to remove ferrous impurities from dry, non-magnetic materials in two magnetic stages. This setup ensures maximum metal separation while improving the purity and commercial value of the end product. Widely used in minerals, ceramics, refractories, plastics, and chemical processing industries.

    Functionality & Separation Process

    Material enters through a hopper and passes over the first magnetic drum, which captures larger ferrous contaminants. It then moves onto a second drum for additional separation of finer particles, achieving higher purity levels in a single pass. Available in Regular Power (RP) and High Power (HP) models based on contamination levels and application.

    Construction & Design

    Constructed from high-grade steel with a protective finish, this separator features a rigid frame, enclosed operation to minimize dusting, and built-in wheels for portability. Both magnetic drums are fitted with rare-earth magnets for long-lasting performance.

    Industry Applications

    Suitable for dry material separation in mining, refractory raw materials, ceramics, plastics, and chemical powders. It improves downstream processing efficiency and reduces equipment wear caused by tramp iron and metal particles.

    Export & Installation

    The machine is export-ready with industrial-grade packaging and installation support. Available in custom sizes and configurations to meet specific throughput requirements. Easy to integrate into existing material handling lines.
